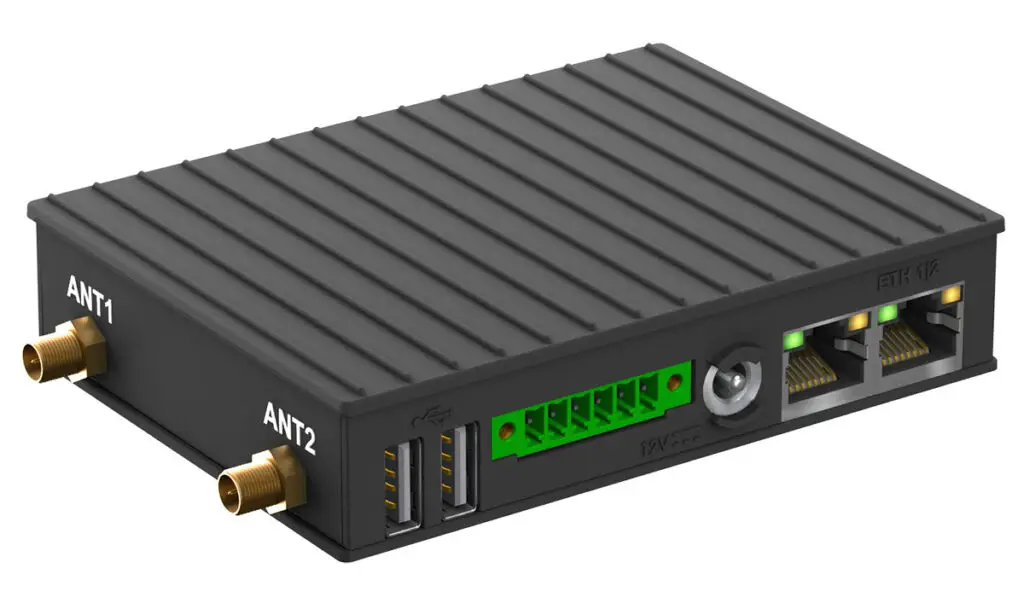

Product Description
Balanced quad-core performance for standard industrial deployments. Dual Ethernet for network redundancy, robust I/O for integration with existing SCADA/BMS systems. Best value for production fleets.
CPU: Quad A53 1.8GHz + M4
RAM: 4 GB LPDDR4
Storage: 32 GB eMMC + microSD
Ethernet: 2x GbE / (PoE Optional)
Wireless: WiFi 6 / BT 5.1 (Optional)
USB: 3x USB 3.0
Display: USB Micro
Serial: RS232 / RS485 / CAN
Form Factor: 112x84x25 mm
*Features subject to change.
Power: Consumption 2-7W typical
Input: 8-36v DC or PoE 802.3af/at (Optional)
Efficiency: Optimized for 24/7 edge operation
Enclosure: Fanless aluminum IP54-65
Mounting :DIN rail / wall mount
Operating Temp: -40°C to +80°C
Humidity: 10-90% RH (non-condensing)
MTTF: 200,000 hours
Operating System: BalenaOS with fleet provisioning and OTA updates
Deployment: Auto-join via Ethernet/PoE, zero-touch configuration
Management: Scalable to thousands of devices via balenaCloud
FCC :Class B / CE
EMC: EN 55032/5, EN 61000-6-2,
EN 61000-6-3
Safety: EN/UL/IEC 62368-1
